Engine Oiling, Oil Pan and Indicator (Dipstick) for 2009 Chrysler Town & Country
No.
Part # / Description / Price
Price
1
Hex Flange Head Bolt, Mounting
Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X40.00. Front Exhaust Pipe To Exhaust Manifold/Converter
$4.82
$4.82
2
Oil Drain Plug Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
$15.93
$15.93
3
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: M8x1.25x8.0. Park Brake Lever to Park Brake Sled
$4.22
$4.22
4
Oil Pan Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Refer To Illustration 105 For Julian Date Code Information. Used On Engines Built On 1398 05/18/08 And Before
4
Oil Pan Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Refer To Illustration 105 For Julian Date Code Information. Used On Engines Built On 1408 05/19/08 And After
$484.41
$484.41
7
Hex Head Locking Bolt, Mounting Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: M8X1.25X25.25. Engine Oil Pick Up Tube To Engine Oil Pump
$11.06
$11.06
10
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X35.00. Oil Pump Back Cover To Oil Pump Body
11
Crankshaft Rear Oil Seal Retainer Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: See note. After build date TDDE92373XXXXX, One Piece Assembly
12
Torx Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M6X1.00X17.00. Crankshaft Rear Oil Seal retainer To Cylinder Block
13
Dowel Pin, Mounting, Upper Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: Oil Pan To Cylinder Block
$8.79
$8.79
16
18
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M6X1.00X23.00. Oil Pan To Rear Retainer

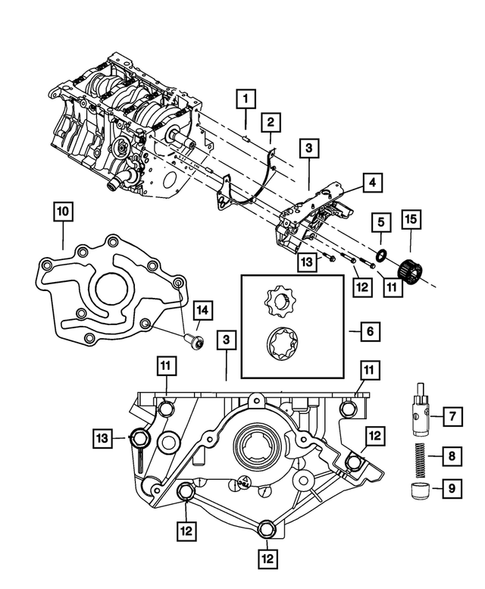

No.
Part # / Description / Price
Price
2
Oil Pump Gasket Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Build Date Codes Are listed On Intake Plenum Tag. After Build Date TDDE92373XXXXX
$20.70
$20.70
3
Engine Oil Pump Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Includes Rotor Set, Plunger, Spring, Cap, Back Cover And Body
4
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X35.00. Oil Pump Back Cover To Oil Pump Body
5
Crankshaft Oil Seal Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Front
$26.38
$26.38
11
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X55.00. Oil Pump Body To Cylinder Block
12
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X35.00. Primary Tensioner Arm To Cylinder Block
$9.35
$9.35
13
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M10X1.50X70.00. Oil Pump Body To Cylinder Block
14
Torx Head Screw, Mounting Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: M6x1.00x15.00. Oil Pump Cover To Timing Cove[M6x1.00x15.00]
No.
Part # / Description / Price
Price
1
Engine Oil Filter, Small Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Small Oil Filter Is Used Due To Clearance Issue With Radiator Hose
$13.17
$13.17
2
Oil Filter Connector Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M22X1.50. Mounts On Oil Pan
$24.77
$24.77
5
Hex Head Bolt And Washer Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M6X1.00.X25.00. Debris Shield To Skid Plate
$11.36
$11.36
6
Oil Filter Adapter Gasket Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Oil Filter Adapter
$29.40
$29.40
7
10w30 Engine Oil 2 Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Quart. MS-6395 [API SM ILSAC GF-4]. [32 Fluid Ounces] Minimum Ship Quanity Of 12.
Not For Sale
Not For Sale
7
10w30 Engine Oil Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Quart. MS-6395 [API SM ILSAC GF-4]. [32 Fluid Ounces] Minimum Ship Quanity Of 12.
8
10w30 Engine Oil Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Gallon. MS-6395 [API SM ILSAC GF-4]. [128 Fluid Ounces] Minimum Ship Quanity Of 3.
8
10w30 Engine Oil 2 Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Gallon. MS-6395 [API SM ILSAC GF-4]. [128 Fluid Ounces] Minimum Ship Quanity Of 3.
Not For Sale
Not For Sale
2 This part contains hazardous materials. Extra shipping costs apply.
