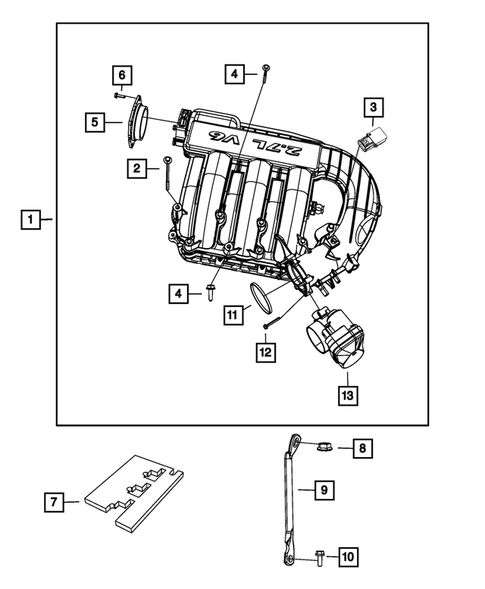

Manifolds and Vacuum Fittings for 2009 Dodge Charger
No.
Part # / Description / Price
Price
2
Hex Head Bolt And Coned Washer, Mounting
Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M6X1.00X130.00. Upper Intake Plenum To Lower Intake Manifold
$16.03
$16.03
3
Map Sensor Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: After 07/21/14. Up to 05/30/05.
$84.67
$84.67
4
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: M6X1.00X75.00. Upper Intake Plenum To Lower Intake Manifold
5
Manifold Tuning Valve Cover Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
6
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M6X1.00X17.00. Manifold Tuning Valve Plate To Intake Manifold
8
Hex Flange Serration Nut, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M6x1. Intake Manifold Support Bracket To Intake Manifold
10
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: M8X1.25X25.00. Oil Pickup Tube To Timing Case Cover
$8.69
$8.69
11
Throttle Body Gasket Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
12
Hex Head Flat Washer Bolt, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M5.74X1.81X49.00. Throttle Body To Upper Intake Manifold
13
Throttle Body Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
$486.42
$486.42
No.
Part # / Description / Price
Price
1
Exhaust Manifold Gasket, Right And Left Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE.
$28.59
$28.59
3
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M8X1.25X40. Exhaust Manifold To Cylinder Head
$18.19
$18.19
4
Exhaust Manifold Shield, Upper Left Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
Description: Upper Left.
4
Exhaust Manifold Shield, Lower Left Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
Description: Lower Left.
4
Exhaust Manifold Shield, Upper Right Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
Description: Upper Right.
4
Exhaust Manifold Shield, Lower Right Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. ALL V6 ENGINES.
Description: Lower Right.
5
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M6X1.00X35.00. Not Included In Item #1
$3.22
$3.22
6
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. 6.1L V8 SRT HEMI ENGINE.
Description: [M10X1.50X77.74]. Mounting Front Exhaust Pipe To Exhaust Manifold
$4.92
$4.92
7
Hex Flange Lock Nut, Mounting Mopar
Mopar Description: M10x1.50. Mounting Front Exhaust Pipe To Exhaust Manifold
$2.71
$2.71
No.
Part # / Description / Price
Price
4
Lock Patch Bolt, Mounting Mopar
Mopar Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE.
Description: M6X1.00X42.00. Lower Intake Manifold To Cylinder Head
