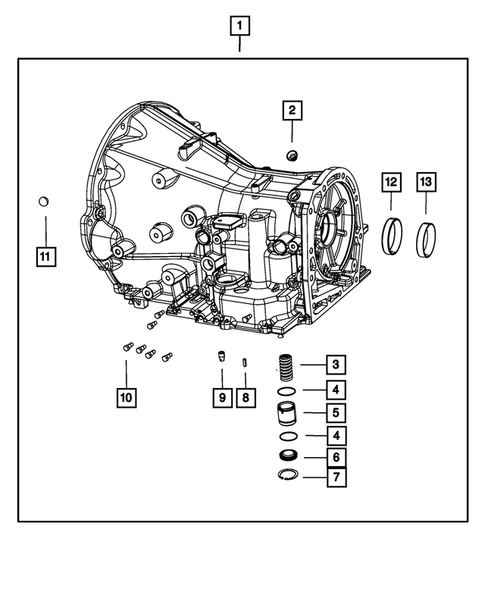

Case, Extension, Oil Pan, and Indicator (Dipstick) for 2009 Dodge Durango
No.
Part # / Description / Price
Price
2
Transmission Case Plug
Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Located near the top, on the side of the case
$7.24
$7.24
3
Accumulator Spring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Same Part Number Is Used For All Six Springs
$39.75
$39.75
4
Accumulator Seal Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Same Part Number Is Used For All Twelve Seals
$9.20
$9.20
5
Accumulator Piston Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Same Part Number Is Used For All Six Pistons
$41.76
$41.76
6
Accumulator Cover Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Fwd. Trans Accumulator.
$7.39
$7.39
7
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Fwd. Transmission Case to Case Accumulator.
$8.99
$8.99
8
$7.24
9
Dowel Bushing Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Valve Body to Case.
$17.64
$17.64
10
Pressure Check Plug Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Fwd.
$9.10
$9.10
11
Transmission Oil Pump Ball Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Inside Oil Pump Housing. Inside The Reactions Shaft Support. Stop Fluid Transmission Accumulator Bore.
$3.77
$3.77
12
Output Shaft Bearing Cup Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Fwd. Serviced With the Transmission Case.
$27.64
$27.64
13
Differential Bearing Cup Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Fwd. Two Wheel Drive.
$37.29
$37.29

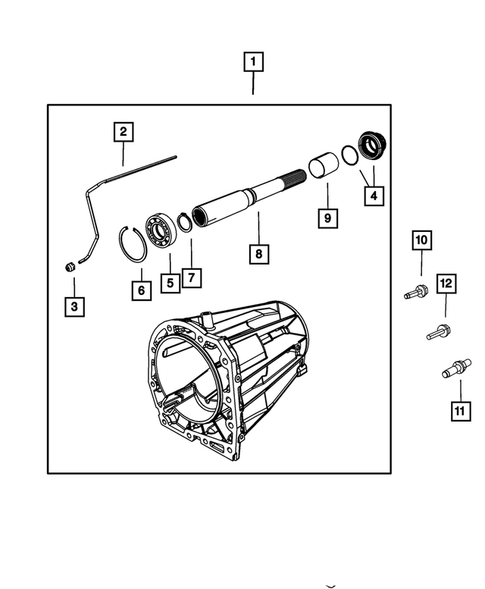

No.
Part # / Description / Price
Price
2
Tube And Grommet Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Bearing Lube. Extension Lubrication. Includes Item #2.
3
Transmission Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Oil Feed Seal. Oil Feed Tube. Lube Tube Grommet Seal.
$19.10
$19.10
4
Output Shaft Seal Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Rear Extension Seal 2WD.
$52.56
$52.56
5
Output Shaft Bearing, Rear Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: 52105959aa. From 9/10/02. Rear.
6
Snap Ring, Rear Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Rear.
$11.61
$11.61
10
Hex Head Screw And Washer, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: M10x1.5x37. Adapter to Transmission Case
$7.84
$7.84
12
Hex Head Screw And Washer, Mounting Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: M10x1.5x37. Transfer Case Adapter to Transmission

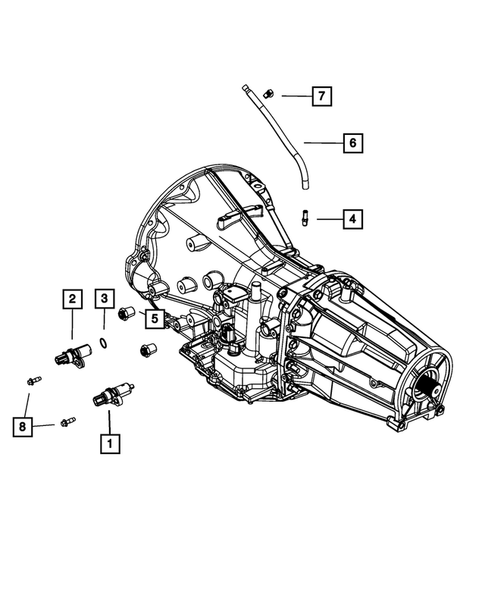

No.
Part # / Description / Price
Price
1
Transmission Output Speed Sensor Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Output Speed Sensor.
$101.51
$101.51
2
Transmission Input Speed Sensor Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Input and Output Speed Sensor.
$61.00
$61.00
3
O Ring Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Engine Speed Sensor
$10.15
$10.15
4
Oil Cooler Hose Connector Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Trans Vent Hose.
5
Quick Connect Fitting Kit Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Cooler Line to Trans Case. Transmission Cooler Line To Transmission. Pressure. Return. Up to 07-17-2004.
$38.84
$38.84
7
Transfer Case Vent Hose Clip Mopar
Mopar Notes: Engines: 5.7L V8 HEMI HEV ENGINE. Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 4-SPD. AUTOMATIC VLP 42RLE TRANS.
$3.67
$3.67

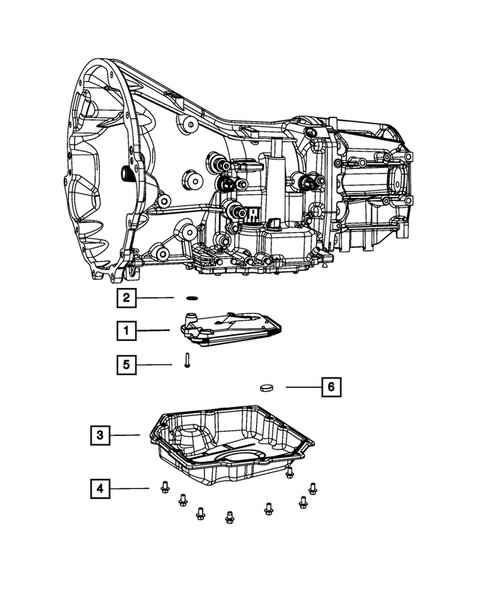

No.
Part # / Description / Price
Price
1
Valve Body Gasket And Seal Package Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Can be used with Oil Pans 52852912AA and 52852912AB
$68.94
$68.94
2
Trans Oil Filter O Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: [ID=.687 OD=.875 THK=.093] / Stop Fluid Filter To Transmission Plate / Transmission Oil Fiter
$10.60
$10.60
3
Transmission Oil Pan Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: After 1/27/2003.
$134.67
$134.67
4
Hex Flange Head Bolt Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: M8x1.25x16
$8.44
$8.44
5
Pan Head Screw And Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: M5x.8x25
$5.53
$5.53
6
Valve Body Gasket And Seal Package Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Can be used with Oil Pans 52852912AA and 52852912AB
$8.64
$8.64

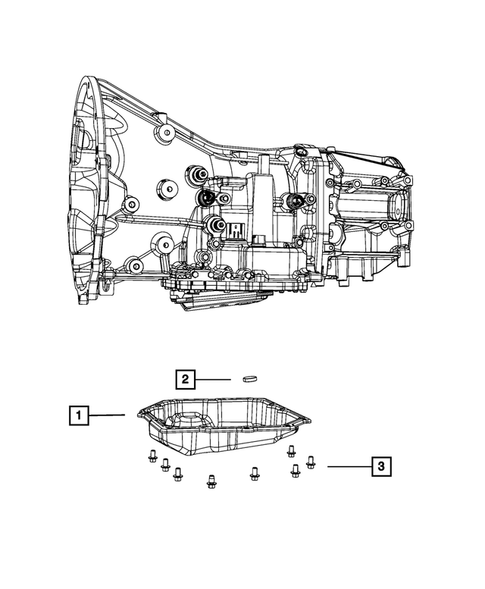

No.
Part # / Description / Price
Price
1
Transmission Oil Pan Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: After 1/27/2003.
$134.67
$134.67
2
Valve Body Gasket And Seal Package Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Can be used with Oil Pans 52852912AA and 52852912AB
$8.64
$8.64
3
Hex Flange Head Bolt Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: M8x1.25x16
$8.44
$8.44

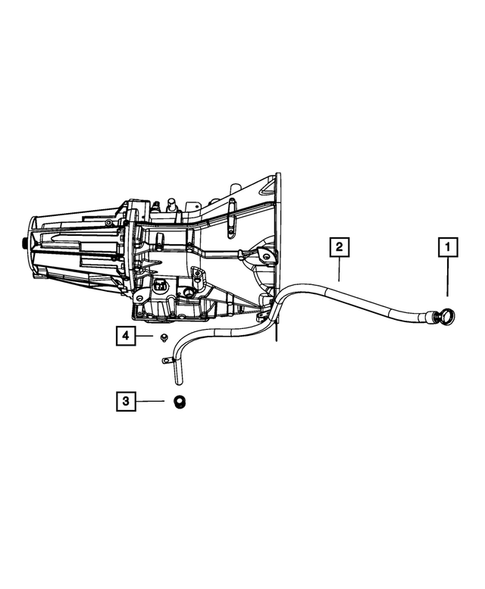

No.
Part # / Description / Price
Price
3
Grommet Mopar
Mopar Notes: Engines: 4.7L V8 ENGINE. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: After [08/02/04]. Transmission Oil Filler Tube. Fill Tube Seal. Oil Filler Tube To Case.
$11.71
$11.71
4
Hex Flange Head Bolt Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION. RWD AHT-T HEV GEN I AUTO TRANS.
Description: M6X1.00X17.00. Vapor Canister Cover & Heat Shield to Bracket
$8.64
$8.64
