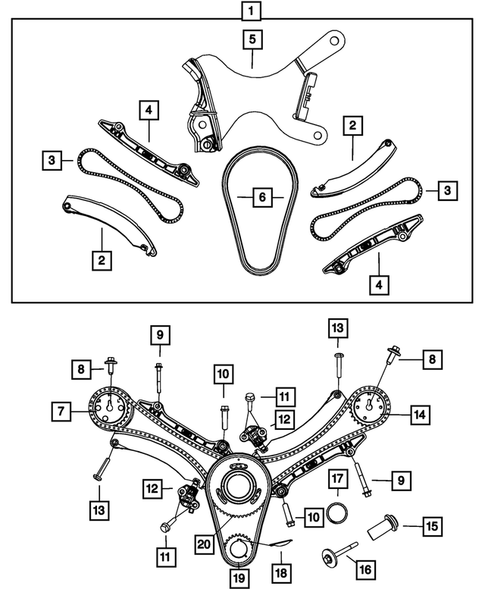

Timing Belt/Chain and Cover and Balance Shaft for 2013 Ram 1500
No.
Part # / Description / Price
Price
1
Engine Timing Drive Package
Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION.
5
Chain Tensioner Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Primary. Also Serviced In Package Item 1
8
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M12X1.75X35.00. Camshaft Sprocket To Camshaft
$8.19
$8.19
9
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M8X1.25X60.00. Timing Chain Guide To Cylinder Block
10
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M8X1.25X45.00. Timing Chain Guide To Cylinder Block
11
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M8x1.25x37.50. Chain Guide And Secondary Tensioner To Cylinder Block
12
Chain Tensioner, Right, Secondary Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Also serviced In Pacage Item 1
12
Chain Tensioner, Left, Secondary Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Also serviced In Pacage Item 1
13
Truss Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M8X1.25X45.00. Tensioner Arm To Right Cylinder Head
$12.66
$12.66
16
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M10X1.50X110.00. Idler Sprocket To Cylinder Block
$8.99
$8.99
18
Woodruff Key, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: [M5X62.00]. Crankshaft Sprocket
$6.83
$6.83
20
Idler Sprocket Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Includes Single Primary And Double Secodary Sprocket

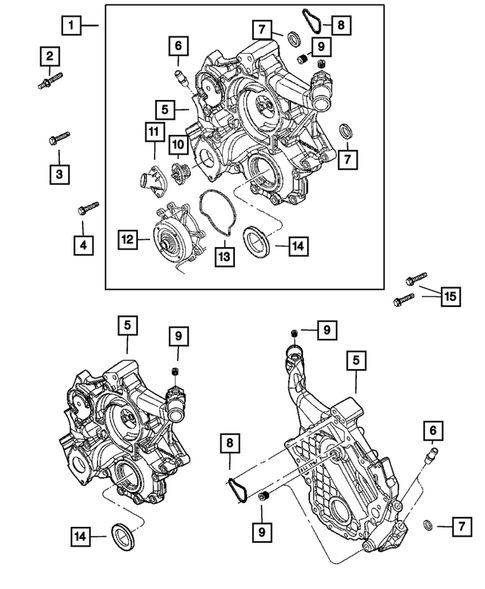

No.
Part # / Description / Price
Price
1
Chain Case Cover Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION.
Description: Includes Items 2,3,4,5,,11
1
Timing Cover Kit Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE. Transmissions: 6-SPD AUTOMATIC 65RFE TRANSMISSION.
Description: See Notes Includes 3,4,5,8,11. See Note
2
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M10X1.50X.437-14X145.20. Chain Case Cover To Cylinder Block
3
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M10X1.50X87.00. Chain Case Cover And Water Pump To Cylinder Block
4
Hex Flange Head Screw, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M14x2.00x80.00. M10x1.50x45.00. Timing Chain Cover And Water Pump To Engine Block
6
Nipple Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VVT Engine.
Description: .375-18X2.00. Also Serviced With Cover
$15.93
$15.93
9
Hex Socket Plug Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VVT Engine.
Description: 3/8-18NPTx.475. Also Serviced With Cover. Chain Case Cover
$10.40
$10.40
10
Thermostat Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: With Seal. 195 Degrees. Thermostat and gasket.
$57.13
$57.13
12
Water Pump Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: With Gasket. Includes Pulley.
$268.34
$268.34
13
Water Pump Gasket Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Also Serviced With Water Pump.
$28.34
$28.34
14
Crankshaft Oil Seal Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Front. Also Serviced With Cover
$14.92
$14.92
15
Hex Flange Head Screw, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M14x2.00x80.00. M10x1.50x65.00. Timing Chain Cover And Water Pump To Engine Block
