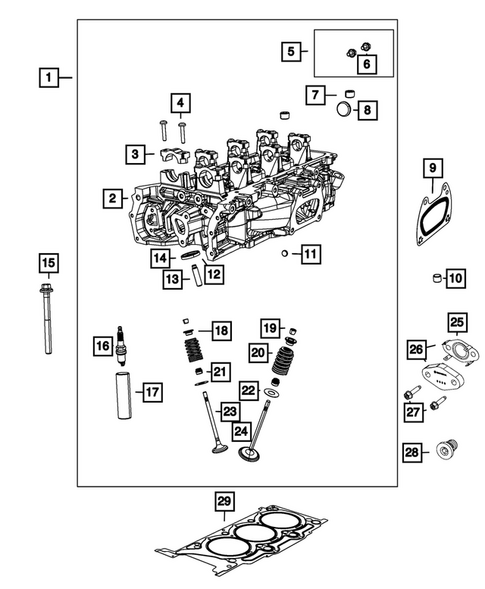

Cylinder Head for 2019 Chrysler Pacifica
No.
Part # / Description / Price
Price
1
Cylinder Head, Right Side 1
Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: With Valves. Complete
1
Cylinder Head, Left Side 1 Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: With Valves. Complete
$896.46
$896.46
1
Cylinder Head, Left Side, Remanufactured 1 Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: With Valves. Complete
1
Cylinder Head, Left Side Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: With Valves. Complete
$2.11
$2.11
1
Cylinder Head, Right Side, Remanufactured 1 Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: With Valves. Complete
1
Cylinder Head, Right Side 1 Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: With Valves. Complete
1
Cylinder Head, Left Side 1 Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: With Valves. Complete
$337.68
$337.68
4
Pan Head Screw, Mounting Right Side Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: M6X1.00X43.00. Camshaft Cap To Cylinder Head
$3.02
$3.02
5
Cylinder Head Bolt Kit Mopar
Mopar Description: WARNING: Bolt Kit MUST Be Used When Replacing Cylinder Heads. Trouble Codes Will Be Set If Not Installed.. Bolt Kit MUST Be Used When Replacing Cylinder Heads. Use One [1] Kit Per Cylinder Head
$22.71
$22.71
6
Hex Flange Head Bolt, Right Cylinder Head Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: M8X1.25X12.00. Cylinder Head Oil Gallery Bolt Is Now Included With Complete Cylinder Head Assembly. Cylinder Head Oil Gallery Bolt Is Now Included With Complete Cylinder Head Assembly
$4.67
$4.67
7
Pipe Plug, Right Cylinder Head Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: .375-18X.475. Oil Gallery In In Cylinder Head Valley
$4.72
$4.72
8
Core Plug, Left, Cylinder Head Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: 1.25 Diameter. [1 1/4] With Zinc Plate. Water Jacket Core
$7.09
$7.09
9
Exhaust Flange To Cylinder Head Gasket Mopar
Mopar Description: To Cylinder Head. Exhaust Flange to Manifold.
$24.12
$24.12
10
Dowel Pin, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Cylinder Heads To Cylinder Block
$9.50
$9.50
11
Ball, Right Cylinder Head Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Oil Gallery.
15
Hex Washer Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: M12X1.50X130.00. Cylinder Head To Cylinder Block
$5.23
$5.23
16
Spark Plug Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
$33.52
$33.52
17
Spark Plug Tube Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
$7.24
$7.24
18
Valve Spring Retainer Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
$3.22
$3.22
19
Valve Spring Retainer Lock Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Exhaust Valves.
$3.57
$3.57
20
Valve Spring Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
$10.75
$10.75
21
Valve Guide Seal Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Black And Brown Are Interchangable. But All One Color Must Be Used On The Cylinder Head At The Same Time.. Black
$4.97
$4.97
22
Valve Spring Seat Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
$3.22
$3.22
23
Intake Valve Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Standard
$20.40
$20.40
24
Exhaust Valve Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Standard
$22.96
$22.96
28
Pipe Plug Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: EGR Blocker Plug To Block
$7.84
$7.84
29
Cylinder Head Gasket, Left Side Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: NOT Included In Long Block Install Kit
29
Cylinder Head Gasket, Right Side Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: NOT Included In Long Block Install Kit
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

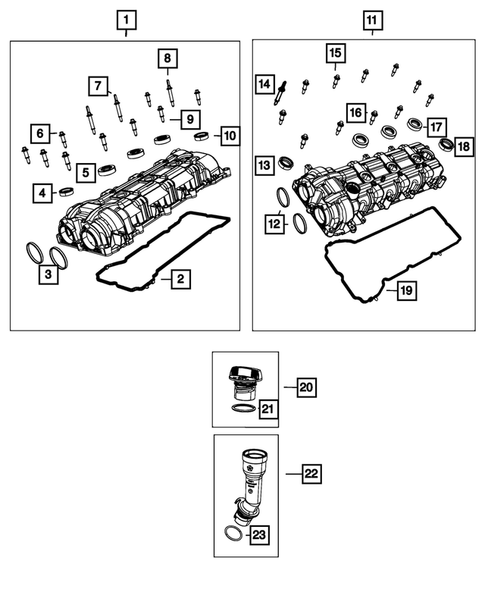

No.
Part # / Description / Price
Price
1
Cylinder Head Cover Mopar
Mopar Positions: Right
Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Right
$297.48
$297.48
1
Cylinder Head Cover Mopar
Mopar Positions: Right
Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Right
2
Cylinder Head Cover Gasket Mopar
Mopar Positions: Right
Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Right
$22.96
$22.96
3
Seal Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Valve Cam Timing Actuator
$5.98
$5.98
4
Seal, Right Side Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Oil Control Solenoid
$11.81
$11.81
5
Spark Plug Well Gasket, Left Side Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Right Side. Left Side. Cylinder Head Cover.
$25.28
$25.28
6
Hex Flange Head Bolt, Mounting Left Side Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: M6X1.00X34.50. Cylinder Head Cover To Cylinder Head
$3.72
$3.72
7
Double Ended Stud And Washer, Mounting Right Side Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: M6X1.00X18.54XM6X1.00X55.50. Cylinder Head Cover To Cylinder Head
$6.23
$6.23
8
Double Ended Stud, Mounting Right Side Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: M6X1.00X18.50XM6X1.00X34.50. Cylinder Head Cover To Cylinder Head
$4.92
$4.92
9
Hex Flange Head Bolt, Mounting Left Side Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: M6X1.00X55.50. Cylinder Head Cover To Cylinder Head
$5.23
$5.23
10
Camshaft Sensor Seal Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Right Side. Left Side. Camshaft Phaser.
$29.40
$29.40
11
Cylinder Head Cover Mopar
Mopar Positions: Left
Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Left
$237.18
$237.18
11
Cylinder Head Cover Mopar
Mopar Positions: Left
Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Left
19
Cylinder Head Cover Gasket Mopar
Mopar Positions: Left
Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Left
$30.65
$30.65
20
Engine Oil Cap Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
Description: Fill
$23.92
$23.92
22
Oil Filler Tube Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. 3.6L V6 24V VVT Engine Upg I w/ESS. 3.6L V6 Hybrid Engine.
$15.48
$15.48
