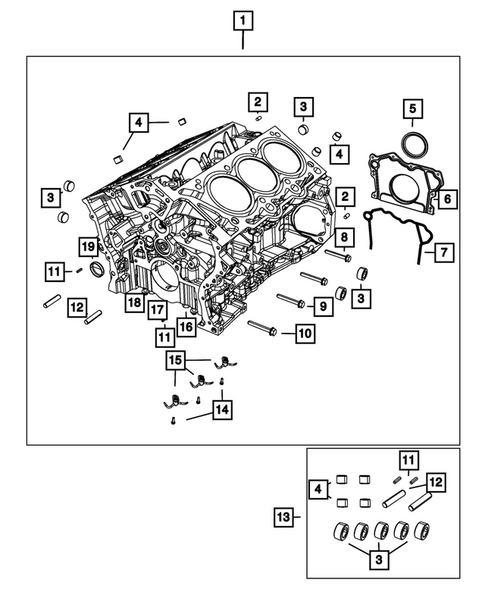

Cylinder Block for 2019 Ram ProMaster 1500
No.
Part # / Description / Price
Price
2
Dowel, Mounting
Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: Transmission To Cylinder Block
$3.12
$3.12
3
Pipe Plug, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M24X1.50. Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Oil Gallery
$9.30
$9.30
3
Pipe Plug, Rear Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M24X1.50. Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Oil Gallery
$25.07
$25.07
4
Dowel Pin, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Cylinder Heads To Cylinder Block
$9.50
$9.50
6
Crankshaft Rear Oil Retainer And Seal Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: CRANKSHAFT OIL SEAL RR
$149.75
$149.75
8
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M6X1.00X20.00. Upper Oil Pan To Rear Oil Seal Retainer
$5.23
$5.23
9
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M8X1.25X40.00. Main Bearing Crossbar To Cylinder Block
$3.47
$3.47
10
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M8X1.25X58.00. Main Bearing Cross To Cylinder Block
$3.47
$3.47
11
Dowel Pin, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Timing Chain Case Cover To Cylinder Block
$3.22
$3.22
12
Pin, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Timing Chain Guide
$5.18
$5.18
13
Short Block Engine Pin Kit Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Included With Short Block Engine. MUST Be Installed Onto Cylinder Block Before Engine Is Installed.
$21.71
$21.71
14
Pan Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M5x.08x16.00. Piston Oil Cooler Jet To Cylinder Block
$8.79
$8.79
15
Piston Oil Cooler Jet Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: PISTON OIL COOLER
$15.13
$15.13
16
Hex Flange Head Bolt, Mounting, Inner Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M11X1.50X94.00. Main Bearing Cap To Cylinder Block
$6.73
$6.73
18
Hex Flange Head Bolt, Mounting, Outer Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M8x1.25x97.00. Main Bearing Cap To Cylinder Block
$4.92
$4.92
19
Core Plug, Left, Cylinder Head Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: 1.25 Diameter. [1 1/4] With Zinc Plate. Water Jacket Core
$7.09
$7.09
No.
Part # / Description / Price
Price

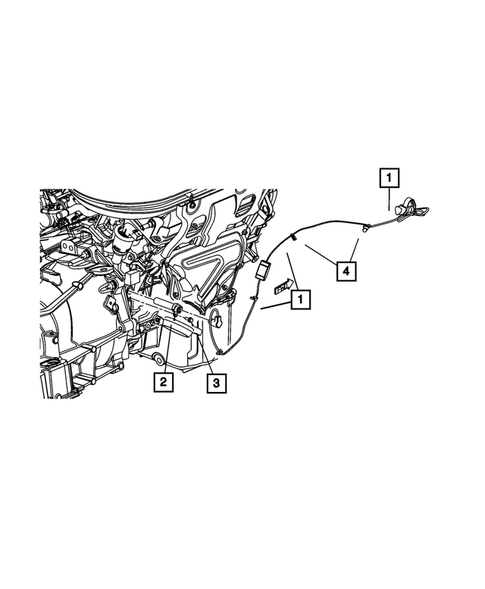

2
Engine Block Heater Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: For 2.7L and 3.5L Engines
$107.54
$107.54
3
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: M6X1.00X20.00. Engine Block Heater To Cylinder Block
$3.12
$3.12
