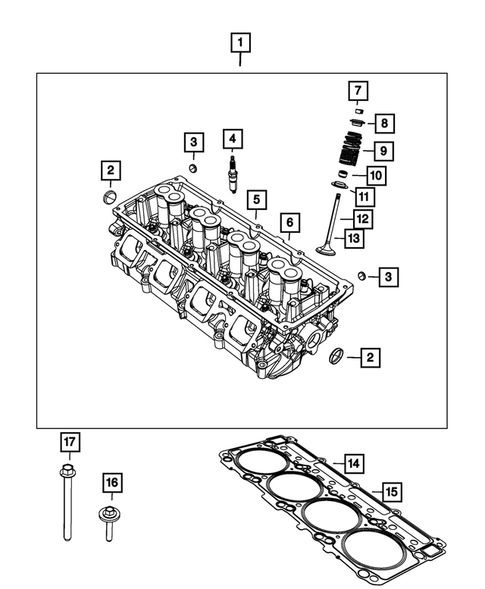

Cylinder Head for 2023 Jeep Wagoneer
No.
Part # / Description / Price
Price
1
Cylinder Head, Partial Machined 1
Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Right. New Part For Core Return Without Valves/Valvetrain
$882.39
$882.39
1
Cylinder Head, Partial Machined 1 Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Left. New Part For Core Return Without Valves/Valvetrain
$1,090.43
$1,090.43
2
Core Plug, Left, Cylinder Head Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT eTorque Engine Upg I. 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: 1.25 Diameter. [1 1/4] With Zinc Plate. Water Jacket Core
$7.09
$7.09
3
Pipe Plug, Right Cylinder Head Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT eTorque Engine Upg I. 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: .375-18X.475. Oil Gallery In In Cylinder Head Valley
$4.72
$4.72
4
Spark Plug, Right Cylinder Head Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Eight (8) Per Cylinder Head Sixteen (16) Total Per Engine
$29.40
$29.40
7
Valve Spring Retainer Lock, Right Cylinder Head Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Left Cylinder Head. Mega Cab. Quanity Is Per Cylinder Head.
$4.72
$4.72
8
Valve Spring Retainer, Right Cylinder Head Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Left Cylinder Head. Mega Cab. Quanity Is Per Cylinder Head.
$6.53
$6.53
9
Valve Spring Kit Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Damperless Includes New 1mm Valve Seat See Note. Used On Engine 028 0 10435 & After. Engine Production Date of January 28th 2010 & After. 1mm Valve Seat
$10.05
$10.05
10
Valve Guide Seal, Right Cylinder Head Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: NOT Included With Long Block Engine Install Kit
$17.44
$17.44
12
Intake Valve, Right Cylinder Head Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Standard
$37.34
$37.34
13
Exhaust Valve, Right Cylinder Head Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Standard
$53.47
$53.47
14
Cylinder Head Gasket Mopar
Mopar Positions: Right
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Right. NOT Included With Long Block Engine Install Kit
$105.53
$105.53
15
Cylinder Head Gasket Mopar
Mopar Positions: Left
Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: Left. NOT Included With Long Block Engine Install Kit
$99.04
$99.04
16
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: M8X1.25X45.00. Beadlock Wheel. 17 x 8 Inch Bead Lock Aluminum Wheel
$15.68
$15.68
17
Hex Head Screw And Washer, Mounting, Secondary Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: M14X1.50X113.5. [M12X1.50X135.0]. Cylinder Head To Cylinder Block
$12.76
$12.76
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

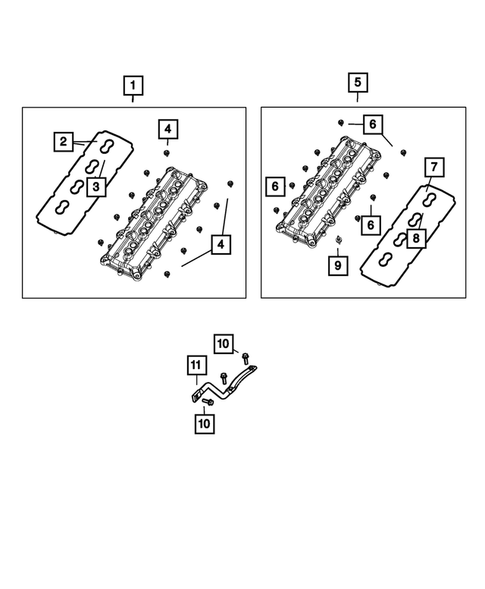

No.
Part # / Description / Price
Price
1
Cylinder Head Cover, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Use Up To 06/27/2016
$373.86
$373.86
2
Cylinder Head Cover Gasket Kit, Right And Left Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Includes Spark Plug Well Gaskets
$107.54
$107.54
3
Spark Plug Well Gasket, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Included With Long Block Engine Install Kit
$21.31
$21.31
4
Special Bolt And Grommet, Mounting Left Side Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: M6X1.00X30.00. Cylinder Head Cover To Cylinder Head 06/27/2016 And After
$13.92
$13.92
5
Cylinder Head Cover, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: Use For 06/27/2016 And After
$182.91
$182.91
9
Double Ended Stud, Mounting Left Side Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE. 6.4L V8 ENGINE.
Description: M6X1.00X59.00. Cylinder Head Cover To Cylinder Head 06/27/2016 And After
$12.76
$12.76
10
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 5.7L V8 ENGINE WITH ETORQUE.
Description: M8x1.25x33. Belly Pan & Skid Plate (Steering Gear Guard) To Cradle
$5.53
$5.53
11
$33.57
